Optimized Template Processing in C++

2026.7.21

In this video/blog post I’ll walk you though the process of how I created a highly-optimized C++ template processor. In addition to standard algorithm analysis and optimization techniques, this involved leveraging constexpr and analysis of compiler output.

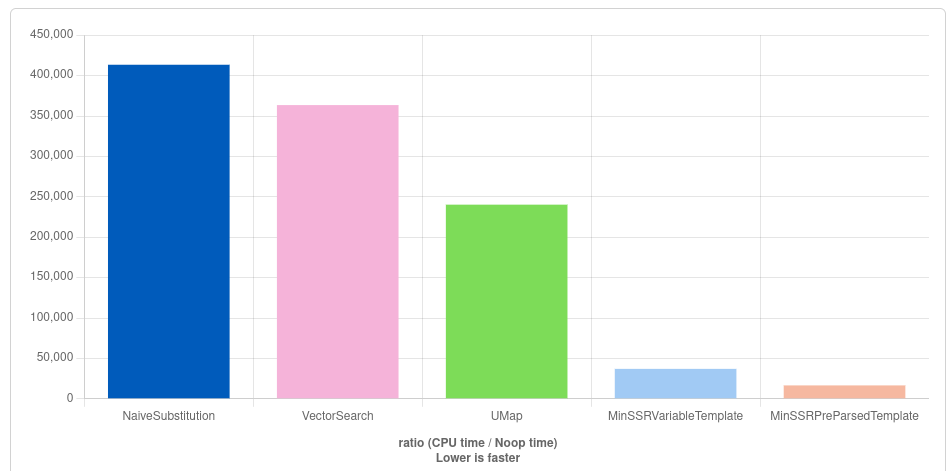

The resulting library is dramatically faster than naive string substitution and performs substantially better than commonly used templating libraries, although with limited features.

Background

What is a template processor?

Put simply, template processors take a template and data as inputs and generate a document, program, etc.

So for example, if you have a website where each user gets their own “about” page, you could use a template processor to generate this page for each user.

<ul>
    <li>Name: {{display_name}}</li>
    <li>Username: {{user_name}}</li>
    <li>Email: {{user_email}}</li>
    <li>Bio: {{bio}}</li>
<ul>

std::string user_page(const User& user) {
    mustache page{get_user_page_template()};
    mustache::data data;
    data.set("display_name", user.display_name);
    data.set("user_name", user.user_name);
    data.set("user_email", user.email);
    data.set("bio", user.bio);
    return page.render(data);
}

Existing Solutions

There are many mature template languages with libraries for multiple langauges that make development easy for most people. So, because this was a minor component of a bigger project, I started out using a library with a bunch of GitHub stars, a sophistocated template language, lots of features I didn’t need, and some defaults I didn’t like. But at least it worked.

Eventually I wanted to “partially render” a template with some global values so that they wouldn’t have be rendered for each page. But according to the library maintainers there was no easy way to do that because it always removes unknown tags … which I also didn’t like. So, considering I was only using it to replace substrings I decided to just roll my own solution instead of using an ugly workaround.

A Template Processor From Scratch

Because making a template processor wasn’t my main goal, I threw something together quickly and made gradual improvements over time. I’ve tried to capture this process here as it includes some things most developers don’t usually think about.

Naive Substring Replacement

So at first I started out with something really simple that replaces tags with substitutions in a string.

void replace_all(
	std::string& haystack,
	const std::string_view needle,
	const std::string_view replacement
) {
    std::size_t i = 0;
    while ((i = haystack.find(needle, i)) != std::string::npos) {
        haystack.replace(i, needle.size(), replacement);
        i += replacement.size();
    }
}

static const html_template = read_file_as_string("template.html");

std::string ret = html_template;
replace_all(ret, "{{a}}", get_replacement(1) );
replace_all(ret, "{{bb}}", get_replacement(2) );
replace_all(ret, "{{ccc}}", get_replacement(3) );
replace_all(ret, "{{dddd}}", get_replacement(4) );
replace_all(ret, "{{eeeee}}", get_replacement(5) );
replace_all(ret, "{{ffffff}}", get_replacement(6) );
replace_all(ret, "{{ggggggg}}", get_replacement(7) );
return ret;

And this was enough to remove the external dependency but I knew there was a lot of room for optimizations.

Feel free to pause and think about how you’d go about optimizing this.

Consider the following:

N = template string length
L = number of distinct tags
M = total number of tags to replace
O( N * ( L * (M / L) * N ) )
~= O( M * N^2 )

The first thing that stood out to me was that it shouldn’t have to scan the entire template string for each substitution.

Single-Pass Substitution

So I wrote the following function that does a single pass instead.

template<class K, class V>
std::string
mustache(std::string template_string, const std::vector<std::pair<K, V>>& rules) {
    // Editing in-place to reduce memory consumption
    // Probably a more performant way to do this
    std::size_t i = 0;
    while ((i = template_string.find("{{", i)) != std::string::npos) {
        const std::size_t end = template_string.find("}}", i + 2);
        const auto tag = std::string_view(template_string
            ).substr(i + 2, end - (i + 2));
        for (const auto& [ needle, replacement ] : rules)
            if (tag == needle) {
                template_string.replace(i, needle.size() + 4, replacement);
                i += replacement.size();
                goto match_found;
            }
        i = end + 2;
match_found:
        ;
    }
    return template_string;
}

And this was much better.

N = template string length
L = number of distinct tags
M = total number of tags to replace
O( N + M * L + M * N )
~= O( M * N + M * L )

But there were two things that stood out to me:

  1. std::string::replace could have to grow the string mutiple times. Even with exponential growth optimizations this can be really expensive, expecially for larger templates.
  2. Linear search over the replacement rules isn’t ideal. std::map or std::unordered_map would scale better.

Pre-calculate Length + Hash Map

So to address those two points I made a new function which first calculates how big the output string will be and then uses reserve to allocate exactly that much space before doing the substitutions. I also replaced the vector with std::unordered_map for O(1) lookups. The code looked something like this:

std::string mustache(
    const std::string_view template_string,
    const std::unordered_map<std::string_view, std::string_view>& rules
) {
    // Index of {{ , key + value
    using Replacement = std::unordered_map<std::string_view, std::string_view>::const_iterator;
    std::vector<std::pair<size_t, Replacement>> replacements;
    replacements.reserve(rules.size()); // reasonable starting point

    // First calculate the output string length
    size_t len = template_string.size();
    size_t i = 0;
    while ((i = template_string.find("{{", i)) != std::string::npos) {
        const size_t start = i + 2;
        const size_t end = template_string.find("}}", start);
        const auto tag = template_string.substr(start, end - start);
        auto it = rules.find(tag);
        if (it != rules.end()) {
            replacements.emplace_back(i, it);
            len -= 4; // {{ }}
            len -= tag.size();
            len += it->second.size();
        }

        // Put i after the }}
        i = end + 2;
    }

    // Allocate exactly enough space for the string
    std::string ret;
    ret.reserve(len);

    // Perform the substitutions
    i = 0;
    for (const auto& p : replacements) {
        const size_t l = p.first - i;
        ret.append(template_string, i, l);
        ret.append(p.second->second);
        i += l;
        i += 2; // }}
    }
    ret.append(template_string, i, -1);
    return ret;
}

/// ...

std::unordered_map<std::string_view, std::string_view> rules = {
    { "a", get_replacement(1) },
    { "bb", get_replacement(2) },
    { "ccc", get_replacement(3) },
    { "dddd", get_replacement(4) },
    { "eeeee", get_replacement(5) },
    { "ffffff", get_replacement(6) },
    { "ggggggg", get_replacement(7) }
};
std::string ret = mustache(templ, rules);

N = template string length
L = number of distinct tags
M = total number of tags to replace
O( N + L + N + N * M )
~= O( M * N )

This improved theoretical performance means it scales better, however, constructing a map is a lot more expensive than making a vector, so in some real-world use cases, this can actually give worse performance.

All the C++ template processor libraries I looked at also used unordered_map so this should have comparable performance to off-the-shelf solutions.

Optimizing constexpr Tags

However, looking at the assembly, the compiler wasn’t leveraging the fact that the tags were known at compile time.

It’s my understanding that this is due to two limitations of constexpr:

  1. Memory allocations can’t happen at compile time, this limits their usage in constexpr.
  2. An expression is either constexpr or not, any run-time value makes it not constexpr.

These limitations could change in the future (there’s already a proposal for constexpr parameters), but I want the performance now.

Because memory allocations need to be avoided in constexpr (1), I can’t just allocate nodes on the heap. Making an optimal flat hash map is already extremely difficult, but making a constexpr-optimized one is even harder. So I decided to start with a flat binary search tree.

(I later found out that there are some additional benefits to this)

In order to prevent mixing the constexpr tags with their runtime substitutions (2), I couldn’t simply make a sorted array of pairs, but I could have a constexpr function that sorts an array of tags and another one that determines the index of the tag in the sorted array using binary search. This index can then be used to construct the replacements array in the same order as the sorted tags array.

Something like this:

/// Returns sorted version of given array
template<std::ranges::random_access_range R>
consteval R sort_tags(R&& tags) {
    std::ranges::sort(tags);
    return tags;
}

/// Returns index of tag in array or array.size()
template<std::ranges::random_access_range R>
constexpr size_t index(
    const R& sorted_tags,
    const std::string_view tag
) {
#if __cplusplus >= 202302L
    if consteval {
        if (!std::is_sorted(sorted_tags.cbegin(), sorted_tags.cend()))
            throw "tags not sorted";
    }
#endif

    // Binary search
    auto it = std::ranges::lower_bound(sorted_tags, tag);

    // Not found
    if (it == sorted_tags.end() || *it != tag)
        return sorted_tags.size();

    // Return index
    return std::distance(sorted_tags.begin(), it);
}

// ...

static constexpr auto tags = sort_tags(std::array<std:string_view, 3>{"a", "c", "b"});
std::array<std:string_view, 3> replacements;
replacements[index(tags, "a")] = get_replacement(1);
replacements[index(tags, "c")] = get_replacement(3);
replacements[index(tags, "b")] = get_replacement(2);

// ... compiler output equivalent to:

static const std::array<std::string_view, 3> tags = { "a", "b", "c" };
const std::array<std::string_view, 3> replacements = {
    std::string_view(get_replacements(1)),
    std::string_view(get_replacements(2)),
    std::string_view(get_replacements(3))
};

So because this eliminates the need to construct the tags array at runtime, this should be cheaper to construct than even the vector pairs example from earlier.

My compiler was even smart enough to inline get_replacements and construct the replacements array in order!

The rendering algorithm is very similar to before but using index instead of unordered_map.

/**
    * Replace all {{tags}} in template_string with corresponding substitutions
    * @param template_string mustache template string
    * @param sorted_tags sorted array of tags to replace with corresponding substitutions
    * @param substitutions replacements to apply,
    *   if one larger than sorted_tags, the last value will replace unknown values
    *   otherwise (same size as sorted_tags), unknown values will be ignored
    * @return new string with replacements
    */
template<
    std::ranges::random_access_range R1,
    std::ranges::random_access_range R2>
[[nodiscard]] constexpr std::string mustache(
    const std::string_view template_string,
    const R1& sorted_tags,
    const R2& substitutions
) {
    // index of {{ , key + value
    std::vector<std::pair<size_t, ssize_t>> replacements;
    replacements.reserve(sorted_tags.size()); // reasonable starting point

    std::size_t len = template_string.size();
    std::size_t i = 0;
    while ((i = template_string.find("{{", i)) != std::string::npos) {
        const std::size_t start = i + 2;
        const std::size_t end = template_string.find("}}", start);
        if (end == std::string_view::npos) [[unlikely]] {
            break;
        }
        const auto tag = template_string.substr(start, end - start);
        const auto idx = index(sorted_tags, tag);
        if (idx < substitutions.size()) {
            replacements.emplace_back(i, idx == sorted_tags.size() ? -tag.size() - 1 : idx);
            len -= 4; // {{ }}
            len -= tag.size();
            len += substitutions[idx].size();
        }

        // put i after the }}
        i = end + 2;
    }

    std::string ret;
    ret.reserve(len);
    i = 0;
    for (const auto& p : replacements) {
        const std::size_t l = p.first - i;
        ret.append(template_string, i, l);
        if (p.second < 0)
            ret.append(substitutions[substitutions.size() - 1]);
        else
            ret.append(substitutions[p.second]);
        i += l;
        i += 4; // {{}}
        if (p.second < 0)
            i -= p.second + 1;
        else
            i += sorted_tags[p.second].size();
    }
    ret.append(template_string, i, -1);
    return ret;
}

Making it Pretty

Using this solution is a lot more cumbersome than the others, and because the tags are separated from their replacements it makes reading the code more painful too. To fix this I made some preprocessor macros.

#define FIY_MIN_SSR_TAG_CSV(k, v) k,
#define FIY_MIN_SSR_SET_REPLACEMENT(k, v) MinSSR::set_index(replacements, MinSSR::index(tags, k), v);
#define FIY_MIN_SSR_TAGS_LEN(k, v) + 1

#define MIN_SSR_MUSTACHE(template_string, rules) \
    ([&](){ \
        static constexpr auto tags = (MinSSR::sort_tags(MinSSR::Tags< \
            0 rules(FIY_MIN_SSR_TAGS_LEN)>({rules(FIY_MIN_SSR_TAG_CSV)})));\
        MinSSR::Tags<tags.size()> replacements; \
        rules(FIY_MIN_SSR_SET_REPLACEMENT) \
        return MinSSR::mustache( template_string, tags, replacements); \
    })()

// This replaces unknown tags with `unknown_handler`
#define MIN_SSR_MUSTACHE_WITH_DEFAULT(template_string, rules, unknown_handler) \
    ([&](){ \
        static constexpr auto tags = (MinSSR::sort_tags(MinSSR::Tags< \
            0 rules(FIY_MIN_SSR_TAGS_LEN)>({rules(FIY_MIN_SSR_TAG_CSV)})));\
        MinSSR::Tags<tags.size()+1> replacements; \
        rules(FIY_MIN_SSR_SET_REPLACEMENT); \
        replacements[tags.size()] = unknown_handler; \
        return MinSSR::mustache( template_string, tags, replacements); \
    })()

// ... usage:

#define MY_SSR_RULES(kv) \
    kv("a", get_replacement(1)) \
    kv("bb", get_replacement(2)) \
    kv("ccc", get_replacement(3)) \
    kv("dddd", get_replacement(4)) \
    kv("eeeee", get_replacement(5)) \
    kv("ffffff", get_replacement(6)) \
    kv("ggggggg", get_replacement(7))

std::string ret = MIN_SSR_MUSTACHE(templ, MY_SSR_RULES);
ret = MIN_SSR_MUSTACHE(templ, MY_SSR_RULES, ""); // remove unknown tags

This gives nearly perfect performance:

N = template string length
L = number of distinct tags
M = number of tags to replace
O( N + M log L + M log M )

If I were to do the same constexpr optimizations with a hash map the performance could be O( N + M + M * M log M ) but that would be very difficult and not worth it for me (see next section)… So I’ll leave that as an exercise for the reader.

Optimizing Constant Templates

Usually templates aren’t changed while the program is running. So if we optimize for this case, we can pre-parse the template with the following benefits:

The following struct was defined to handle parsed templates:

/// When the template is constant we can remember where replacements need to occur
struct ParsedTemplate {
    /// Template string with template params removed
    std::string stripped_template;

    /// Locations + substitution index to replace in the template string
    std::vector<std::pair<size_t, ssize_t>> substitution_points;

    /**
     * Populate the parsed template with the corresponding runtime values
     * @param substitutions list of corresponding replacements w/ default handler at the end
     * @return replaced string
     * @remark unknown value must be either the last element of the array or the template must not
     *  have any unknown values (ie - parsed with leave_unknown = true)
     */
    template<std::ranges::random_access_range R>
    constexpr std::string process(
        const R& substitutions
    ) const {
        // Calculate size
        size_t len = stripped_template.size();
        for (const auto& p : substitution_points)
            if (p.second < 0)
                len += substitutions[substitutions.size() - 1].size();
            else
                len += substitutions[p.second].size();

        // Construct string
        std::string ret;
        ret.reserve(len);
        size_t prev = 0;
        for (const auto& p : substitution_points) {
            const auto l = p.first - prev;
            ret.append(stripped_template, prev, l);
            if (p.second < 0)
                ret.append(substitutions[substitutions.size() - 1]);
            else
                ret.append(substitutions[p.second]);
            prev = p.first;
        }
        ret.append(stripped_template, prev);
        return ret;
    }

    /**
     * Parse a template
     * @param template_string input template
     * @param sorted_tags sorted array of tags used in the template
     * @param leave_unknown will unknown tags be ignored (true) or replaced (false)?
     */
    template<std::ranges::random_access_range R>
    static inline constexpr
    ParsedTemplate parse_mustache(
        const std::string_view template_string,
        const R& sorted_tags,
        const bool leave_unknown = true
    ) {
        // TODO improved algorithm: copy+edit template string
        // TODO this should probably be the constructor

        // Find all substitution points in template string
        ParsedTemplate ret;
        size_t prev = 0;
        size_t i = 0;
        size_t index_offset = 0;
        while ((i = template_string.find("{{", prev)) != std::string::npos) {
            index_offset += i - prev;

            const size_t start = i + 2;
            const size_t end = template_string.find("}}", start);
            if (end == std::string_view::npos) [[unlikely]] {
                index_offset += template_string.size() - i;
                break;
            }
            const auto l = end - start;
            const auto tag = template_string.substr(start, l);
            const auto idx = index(sorted_tags, tag);

            if (idx == sorted_tags.size()) {
                if (leave_unknown) {
                    // Not a substitution, include tag
                    index_offset += l + 4;
                } else {
                    // Replace unknown
                    ret.substitution_points.emplace_back(index_offset, -1 - (ssize_t)l); // default handler
                }
            } else {
                // Substitution
                ret.substitution_points.emplace_back(index_offset, idx);
            }

            // Put i after the }}
            prev = end + 2;
        }

        // TODO resize_and_overwrite
        ret.stripped_template.reserve(index_offset);
        i = 0;              // index in original template string
        index_offset = 0;   // index in stripped string
        for (auto& p : ret.substitution_points) {
            // End of last -> start of current
            const std::size_t l = p.first - index_offset;

            // Copy non-param part of template
            ret.stripped_template.append(template_string, i, l);

            // Don't copy param into stripped string
            index_offset += l;

            // Translated index
            i += l; // non-param part
            i += 4; // {{}}
            i += p.second < 0
                ? -p.second - 1
                : sorted_tags[p.second].size();
        }

        // Include end
        if (i < template_string.size())
            ret.stripped_template.append(template_string, i);

        return ret;
    }
};

And the accompanying helper macros:

#define MIN_SSR_MUSTACHE_PT(template_string, rules) \
    ([&](){ \
        static constexpr auto tags = (MinSSR::sort_tags(MinSSR::Tags< \
            0 rules(FIY_MIN_SSR_TAGS_LEN)>({rules(FIY_MIN_SSR_TAG_CSV)})));\
        static const auto tp = MinSSR::ParsedTemplate::parse_mustache(template_string, tags);\
        MinSSR::Tags<tags.size()> replacements; \
        rules(FIY_MIN_SSR_SET_REPLACEMENT) \
        return tp.process(replacements); \
    })()

#define MIN_SSR_MUSTACHE_PT_WITH_DEFAULT(template_string, rules, unknown_handler) \
    ([&](){ \
        static constexpr auto tags = (MinSSR::sort_tags(MinSSR::Tags< \
            0 rules(FIY_MIN_SSR_TAGS_LEN)>({rules(FIY_MIN_SSR_TAG_CSV)})));\
        static const auto tp = MinSSR::ParsedTemplate::parse_mustache(template_string, tags, false);\
        MinSSR::Tags<tags.size()+1> replacements; \
        rules(FIY_MIN_SSR_SET_REPLACEMENT); \
        replacements[tags.size()] = unknown_handler; \
        return tp.process(replacements); \
    })()

The resulting performance is a dramatic improvement over what we started with and better than any mainstream template processors I could find.

N = template string length
L = number of distinct tags
M = number of tags to replace
O( N + M )

I’m sure there’s still some room for optimizations, but nothing obvious or subtantial.

Conclusion

My code is fast and I am happy.

Future Directions

Publishing as a Separate Library

I’ll probably make a dedicated repo for this library soon and will update this post once I do.

Features

Calling this a templating engine is a bit of an overstatement, as it only supports basic substitution. However, if you’re okay with not having everything in a single template, this library can be used to accomplish everything the alternatives do, altho the easy way to do it might not be the most optimal.

I’ve made programming languages so I should be able to add some features without impacting performance outside of pre-processing the templates, but so far I haven’t really needed any of them, so not sure if it’s worth it.

Ease of Use

This still feels kinda clunky to me, it feels weird having to use macros but I can’t think of a way to make it better.

Leveraging Constexpr Elsewhere

C++26 improves constexpr support in STL containers but still there’s a ways to go in terms of compiler optimizations and support (afaik). There might be value in making partial-constexpr optimized containers but if/when constexpr function parameters get added the time invested in that might not be worth it.
